61215(F77AS)

Instructions Download>

Model

F77AS61215

Handle material

Plastic

Mount type

Top mount / side mount

Inlet/outlet

2"M

Drain

2"Minstalled with 1.5"M flow control connector

Brine line connector

3/4"M

Mounting base

4" -8UN

Riser pipe

1.5" D-GB

Flow rate

15m³/h

Filter tank

24"--42"

Water pressure

0.2-0.6Mpa

Water temperature

5-50

Water turbidity

Down-flow regeneration2FTU

Application

Ion exchange equipment, water softener for boiler system, RO pretreatment system


Product description

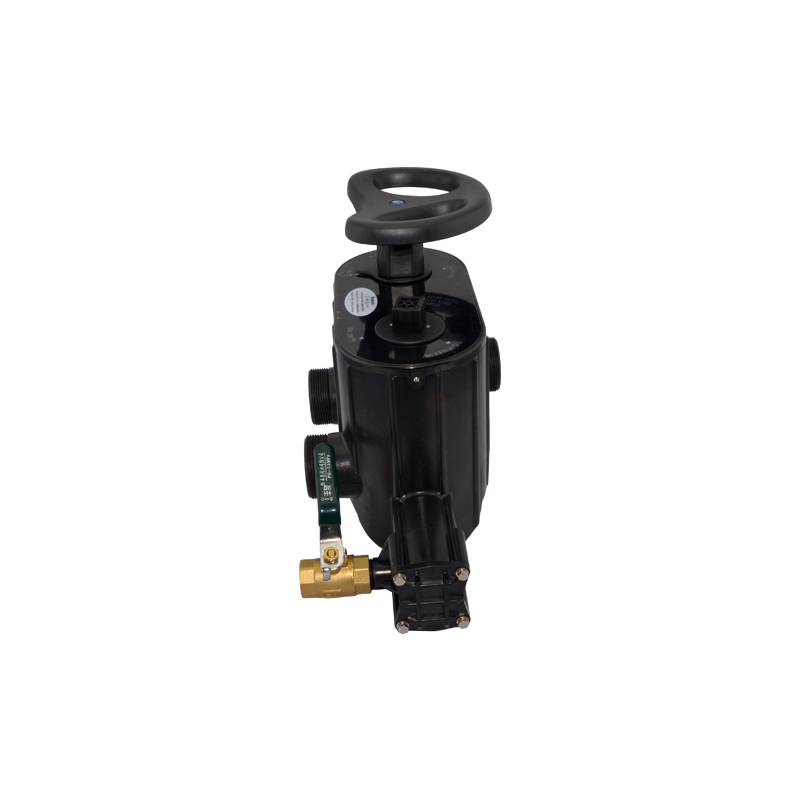

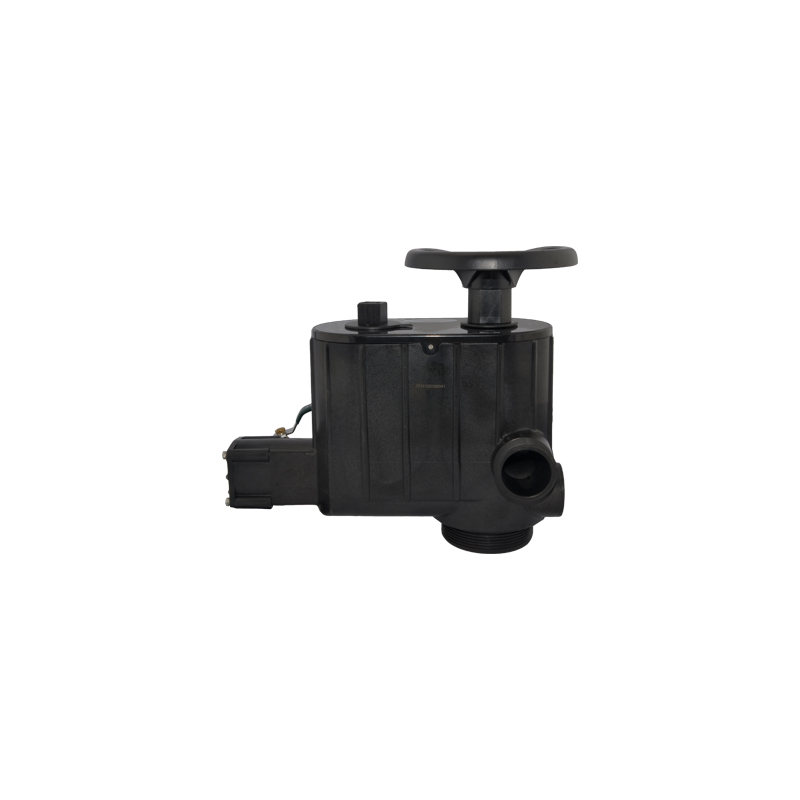

F77AS Manual Multiport Softener Control Valves

Featuring a flow rate of 15m³/h, the F77AS manual multiport softener control valve is equipped with two valve cores, one controlling the inflow of the water, the other responsible for outflow. The different functions such as service, backwash, brine and slow rinse, brine refill and fast rinse can be realized through rotating the handwheel counterclockwise to put the two pointers in the desired precision.

Product Characteristics

  • Simple structure and reliable sealing

    It adopts hermetic head faces with high degree pottery and corrosion resistance for opening and closing. It has two valve cores. One controls inlet water, the other controls outlet water.

  • No water pass the valve in regeneration in single tank type.

  • Brine refill controlled by manual ball valve. (F77AS/61215,F77CS/91215)

    During service, manual ball valve will control to start the brine refill, in order to shorten the regeneration cycle time.

  • Two ways for installation

    Use side-mounted connector to change the valve from top-mounted to side-mounted.

    F77CS can be installed in top mounted or side mounted. (When side-mounted connector TOP side connected with top strainer, BOTTOM side connected with side bottom strainer) It’s up-flow for regeneration. If connector with side-mounted in upside down (TOP side connector with bottom strainer, BOTTOM side connected with top strainer) It’s for floating bed system.

  • For filtration system

Drain outlet is the same size as water outlet. Block the brine line connector change the valve to F77BS filter valve.
