current location:home pageProduct Center

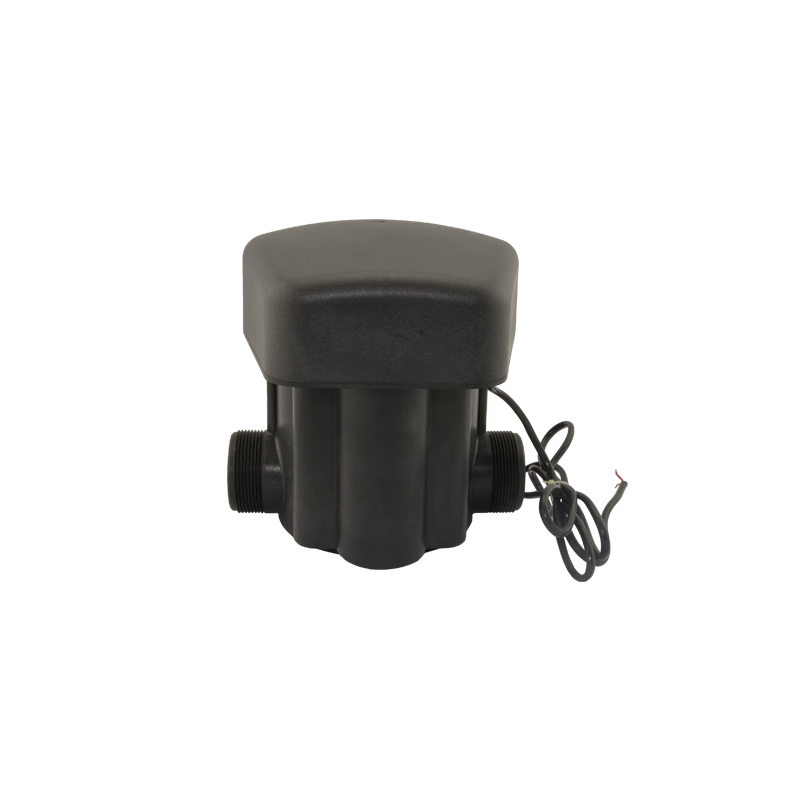

42020_F80

Instructions Download>

Model

42020(F80)

Inlet/outlet

2"F

Drain

2"F

Water treatment capacity

20m³/h

Tank diameter range

10"~18"

Nominal pressure

0.6MPa

Water temperature

5℃~50℃

Water turbidity

<5FTU

Environment temperature

5℃~50℃

Relative humidity

≤95%(25℃)

Power adapter

Input AC100-240V/50-60hZ

Output DC12V,1.5A


Product description

Main Application & Applicability

Mainly used in application that needs remote control.

Be suitable for

Softening system

Ion exchange equipment

Backwash system for ultrafiltration membrane,etc.

Product Characteristics

  • Simple structure and reliable sealing

    It adopts hermetic head faces with high degree pottery and corrosion resistance for opening and closing.

  • Connect Conveniently

    Connecting two of the four wires to the anode and cathode of the transformer respectively to realize the function that is needed.
