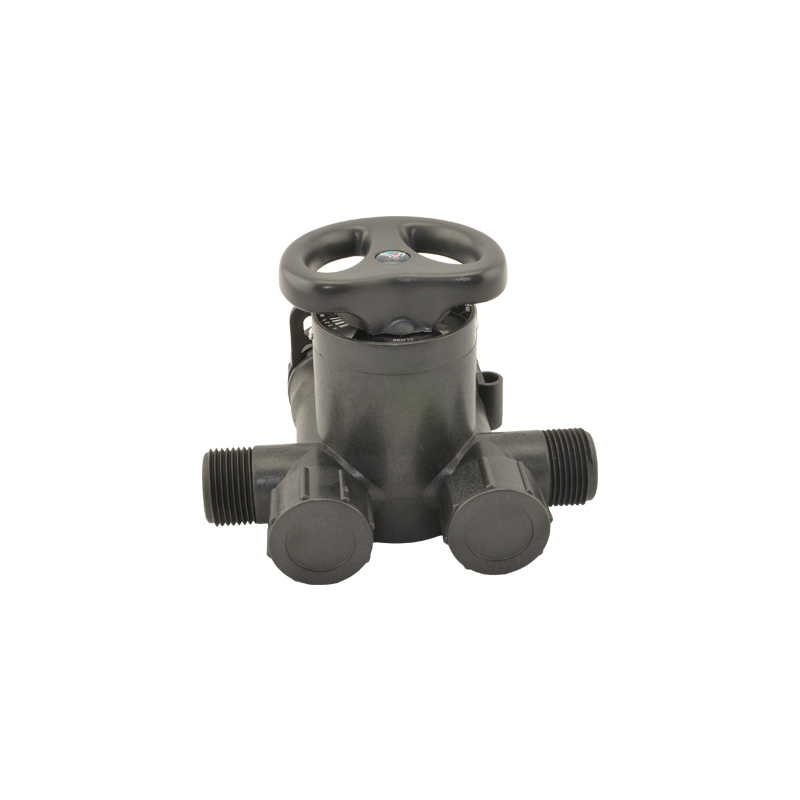

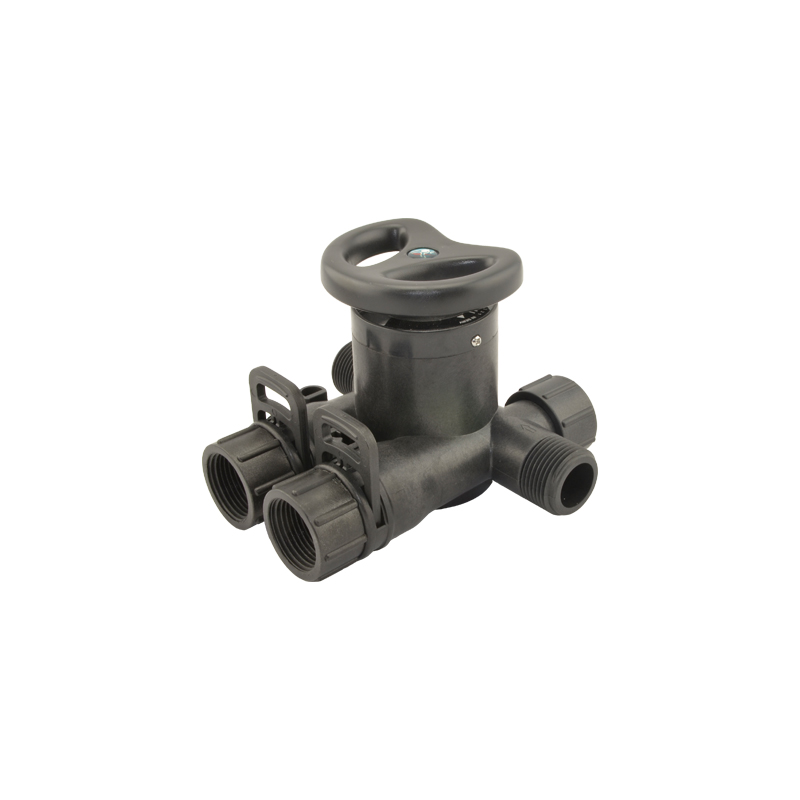

F70A Bypass Valve (Suited F63/F68 Valve)

Instructions Download>

Model

41104(F70A)

Inlet

1" M

Outlet

1" M

Water treatment

capacity

4m³/h

Nominal pressure

0.6MPa

Water temperature

5℃-50℃


Product description

Main Application & Applicability

Bypass valve is mainly used for controlling inlet water bypassing in water treatment systems. Be suitable for the valves of F63, F65, F68, F69, F79, F82 and so on.

When the water softener system needs to be repaired, you can use the bypass function to supply untreated raw water to the outlet.

For residential softener system, extremely softened water is not suitable for drinking. In order to improve the hardness of the water, use the bypass valve and let part of the raw water direct outflow from the outlet, mixing raw water with softened water.
