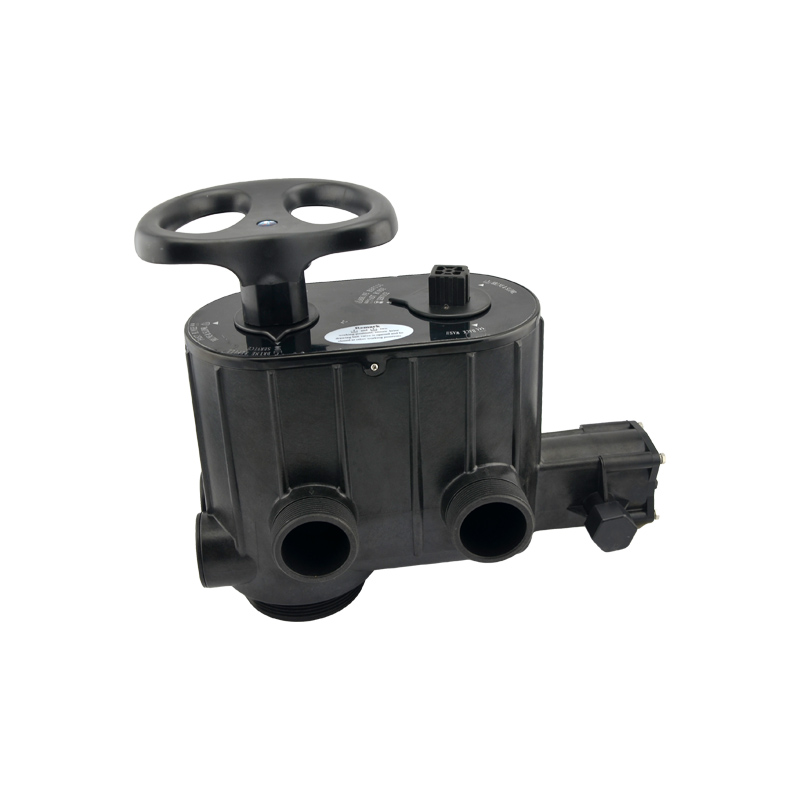

51215(F77BS)

Product Characteristics

• Simple structure and reliable sealing

  It adopts hermetic head faces with high degree pottery and corrosion resistance for opening and closing. It has two valve cores. One controls inlet water, the other controls outlet water.

• No water pass the valve in regeneration in single tank type.

• Brine refill controlled by manual ball valve. （F77AS/61215，F77CS/91215）

  During service, manual ball valve will control to start the brine refill, in order to shorten the regeneration cycle time.

• Two ways for installation

  Use side-mounted connector to change the valve from top-mounted to side-mounted.

  F77CS can be installed in top mounted or side mounted. (When side-mounted connector TOP side connected with top strainer, BOTTOM side connected with side bottom strainer) It’s up-flow for regeneration. If connector with side-mounted in upside down (TOP side connector with bottom strainer, BOTTOM side connected with top strainer) It’s for floating bed system.

• For filtration system

Drain outlet is the same size as water outlet. Block the brine line connector change the valve to F77BS filter valve.
