Model | F56K（51204K） |
Handwheel material | Plastic |
Mount type | Top mount |
Inlet/outlet | 1"F |
Drain | 1"F |
Mounting base | 2.5"-8NPSM |
Riser pipe | 1.05"OD |
Flow rate | 4.5m³/h |
Filter tank | 6"--12" |
Water pressure | 0.15-0.6Mpa |
Water temperature | 5-50℃ |
Water turbidity | ＜20FTU |
Application | Activated carbon filter, sand filter |
Filter media | Quartz sand, activated carbon |

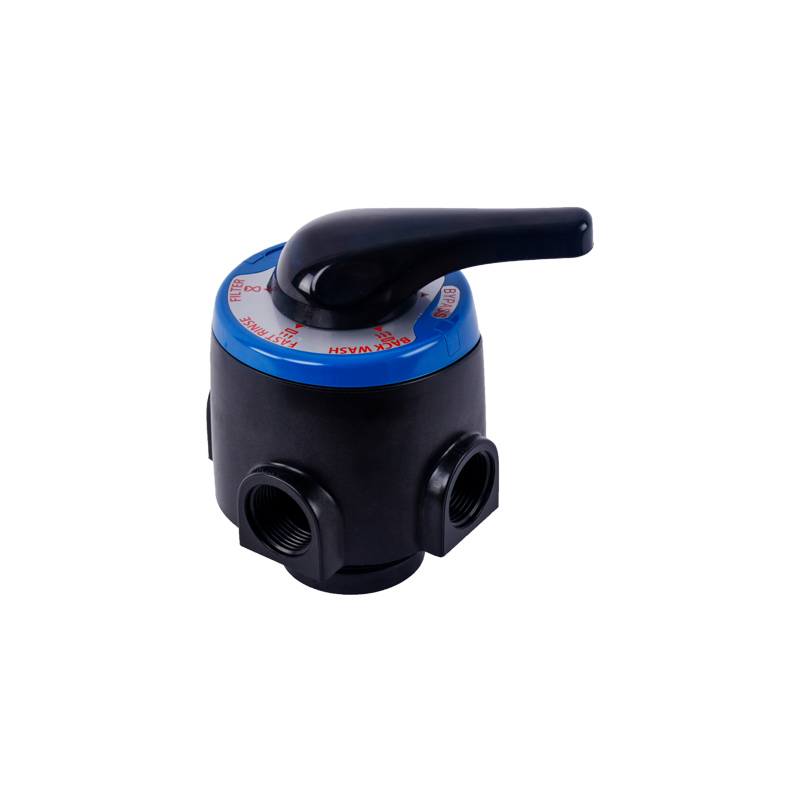

F56K Filter Manual Valves
The F56k manual multiport filter valve is an upgraded version based on the F56A model. Apart from the three common functions, including service, fast rinse, and backwash, the F56k can also be used as a bypass valve.
