53550(F96B1) 53650(F96B3)

Instructions Download>

Model

F96B1/B353550/53650

Regeneration

Time clock type / meter type

Mount type

Side mount

Inlet/outlet

DN80

Drain

DN80

Mounting base

Side mountTop and bottom distributor basketDN100

Riser pipe

Side mountTop and bottom distributor basketDN100

Flow rate

50m³/h

Filter tank

36"--48"

Water pressure

0.2-0.6MPa

Water temperature

5-50

Water turbidity

20FTU

Power adapter

InputAC100~240V/50~60HZ OutputDC24V/4A

Application

Activated carbon filter, sand filter

Filter media

Quartz sand, activated carbon...


Product description

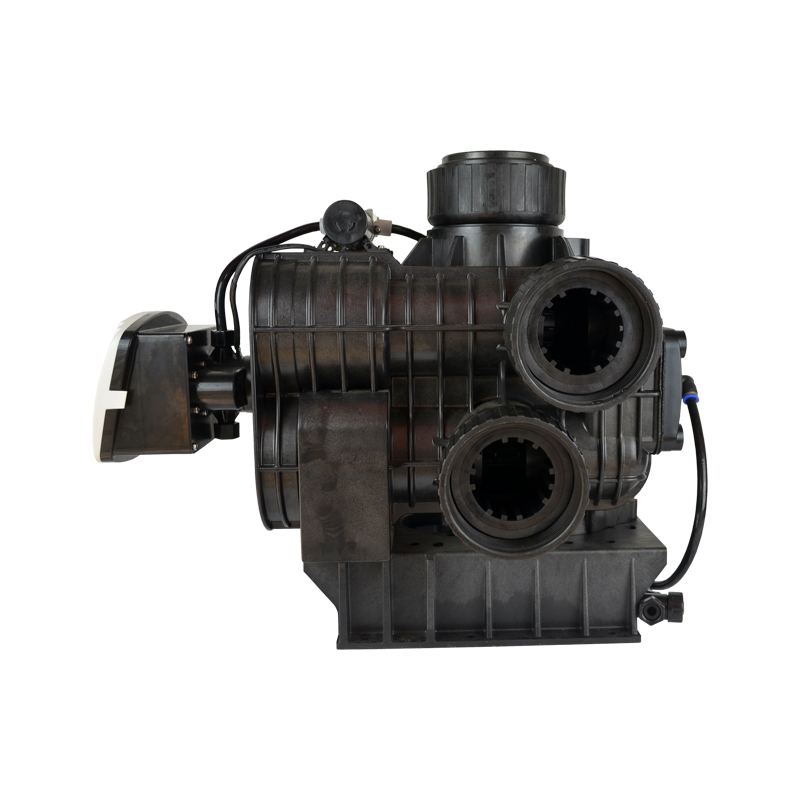

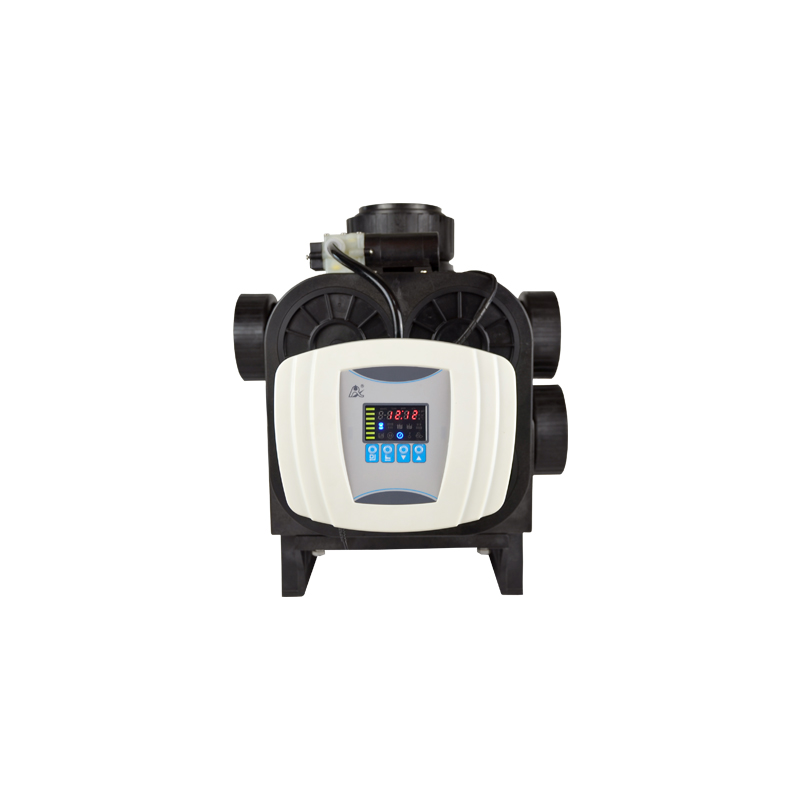

F96B1/B3 Automatic Filter Valves

Operating with a flow rate of 50m³/h, the F96B1/B3 automatic multiport filter valve comes with 4 ports in a T-configuration in the valve body. The automatic multiport filter valve adopts a planar and corrosion resistant gasket for opening and closing. Unfiltered water is brought in from the pump port, which is sent to different passages for treatment. The different flow passages are easily controlled through pushing or pulling the hydraulically balanced piston in the valve. This means the valve can be used as a service, backwash, and fast rinse valve. The F96B1 is a timer clock type while the F96B3 is meter type.
